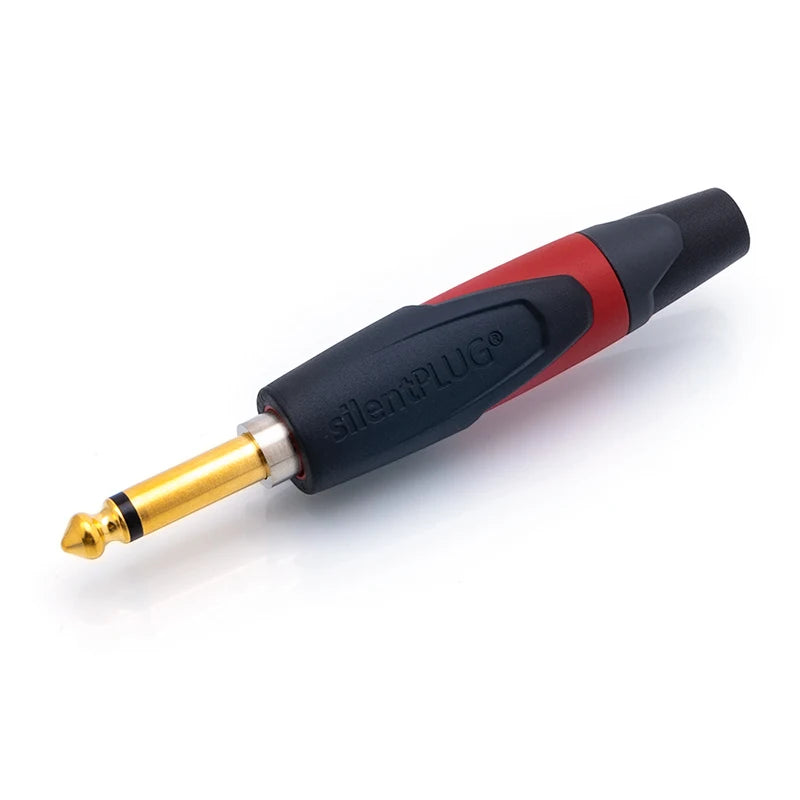

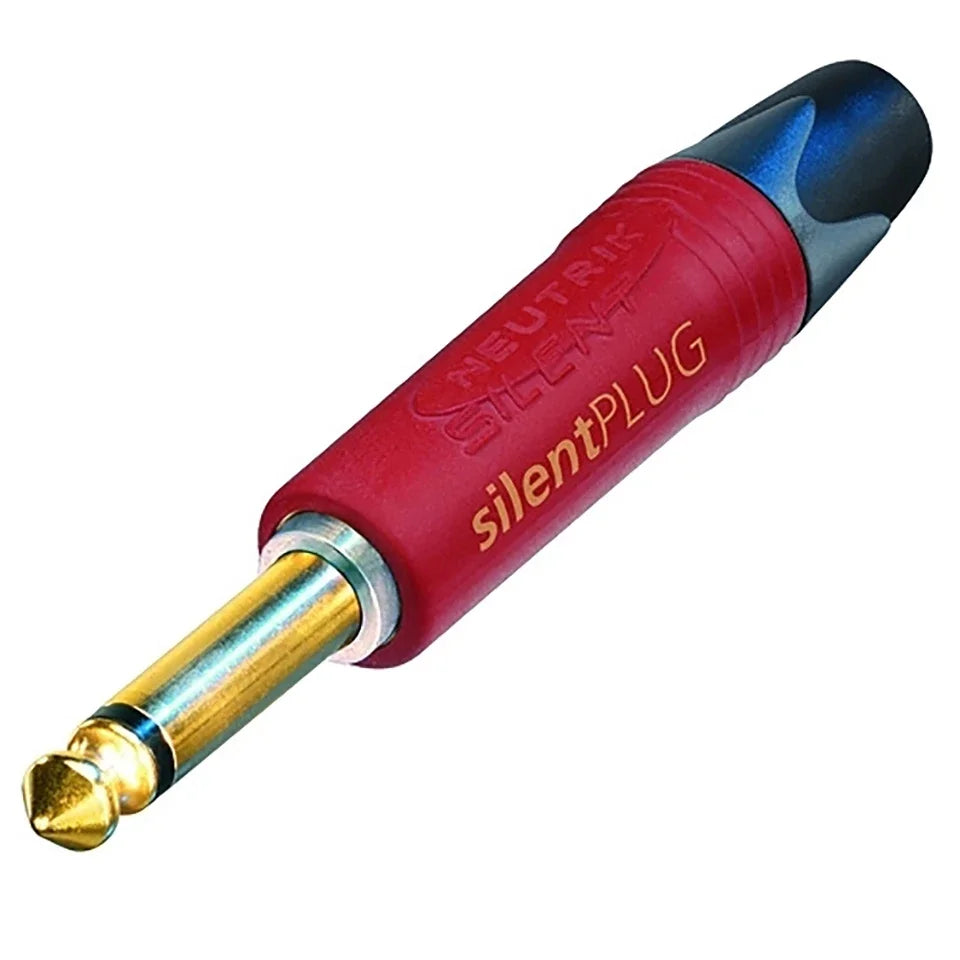

Neutrik silentPLUG 1/4" TS Instrument Plug (Straight / Right-Angle)

Changing guitars mid-set should not sound like a speaker explosion. The Neutrik silentPLUG (NP2X-AU-SILENT / NPR2X-AU-SILENT) is a professional 1/4" TS instrument plug designed to automatically mute the signal during plug/unplug, helping prevent pops and squeals when swapping instruments under load.

Built with a rugged metal shell, gold-plated contacts, and Neutrik’s proven strain relief design, this is a premium connector choice for custom instrument cables and pro repair builds. It is made specifically for instrument (guitar) applications.

Features

• silentPLUG auto-mute switch helps prevent pops and squeals when unplugging/replugging

• Gold-plated contacts for reliable signal connection

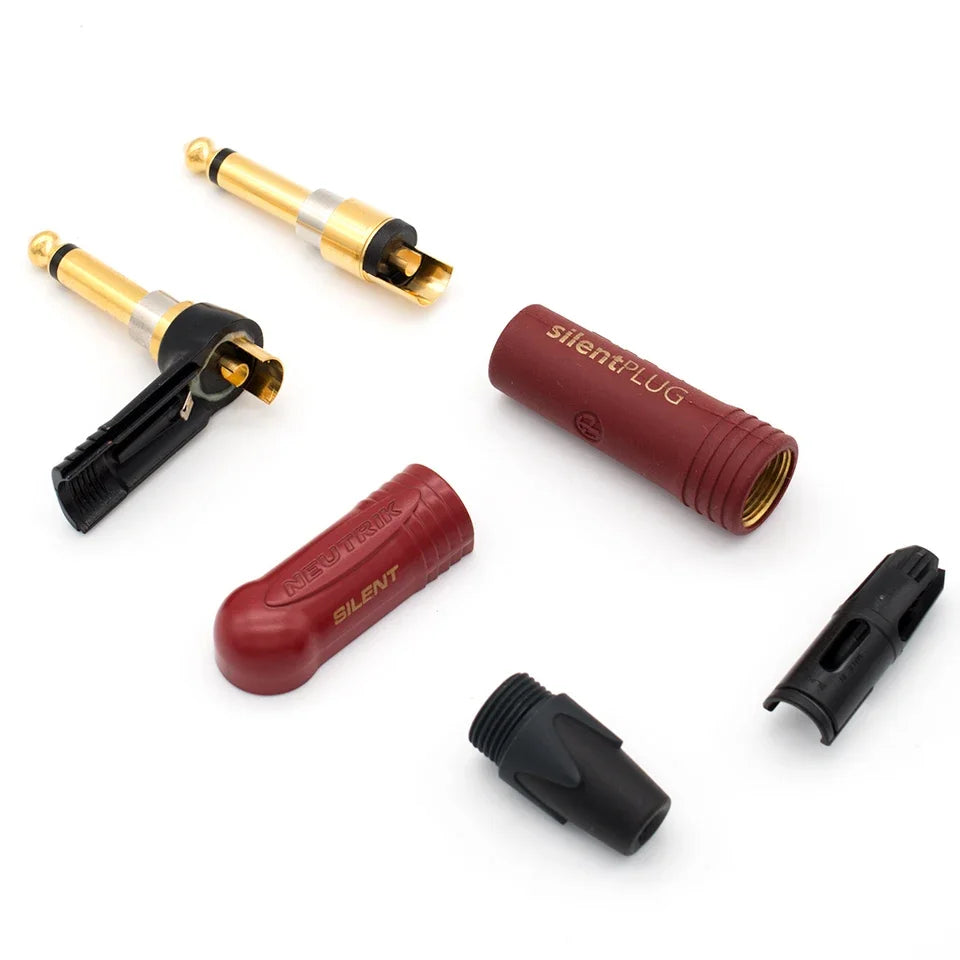

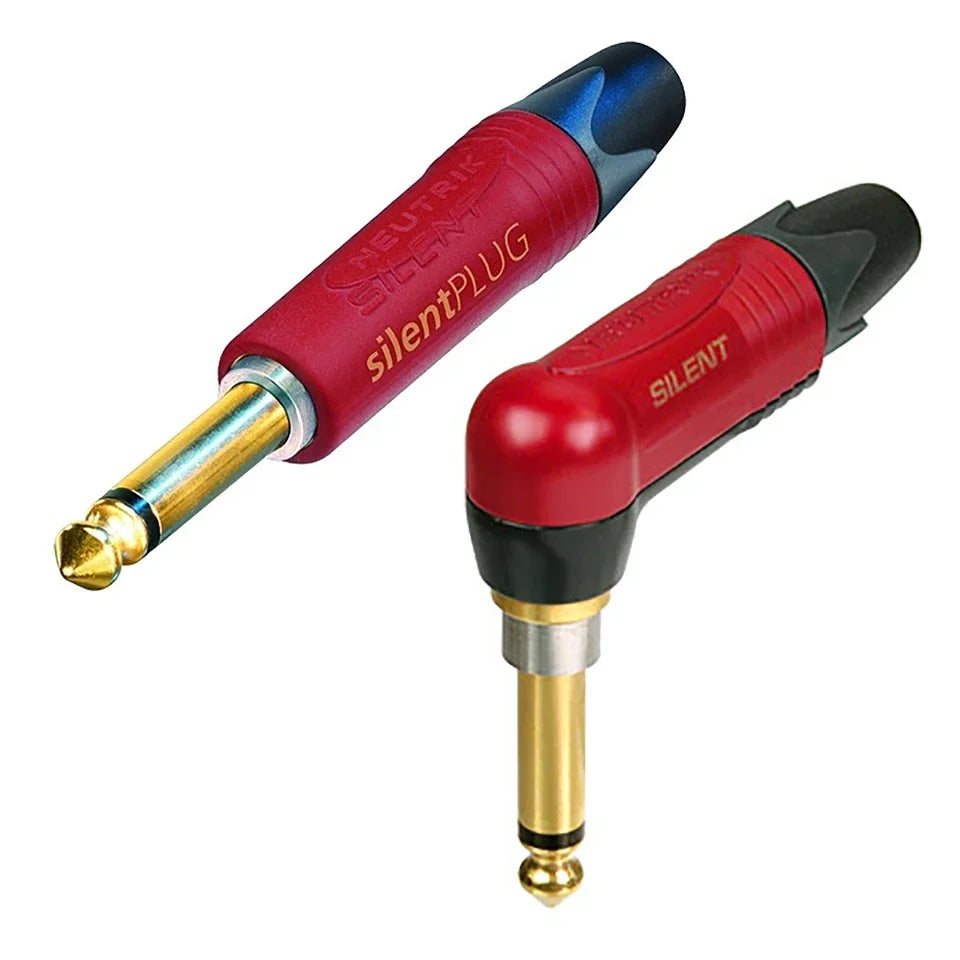

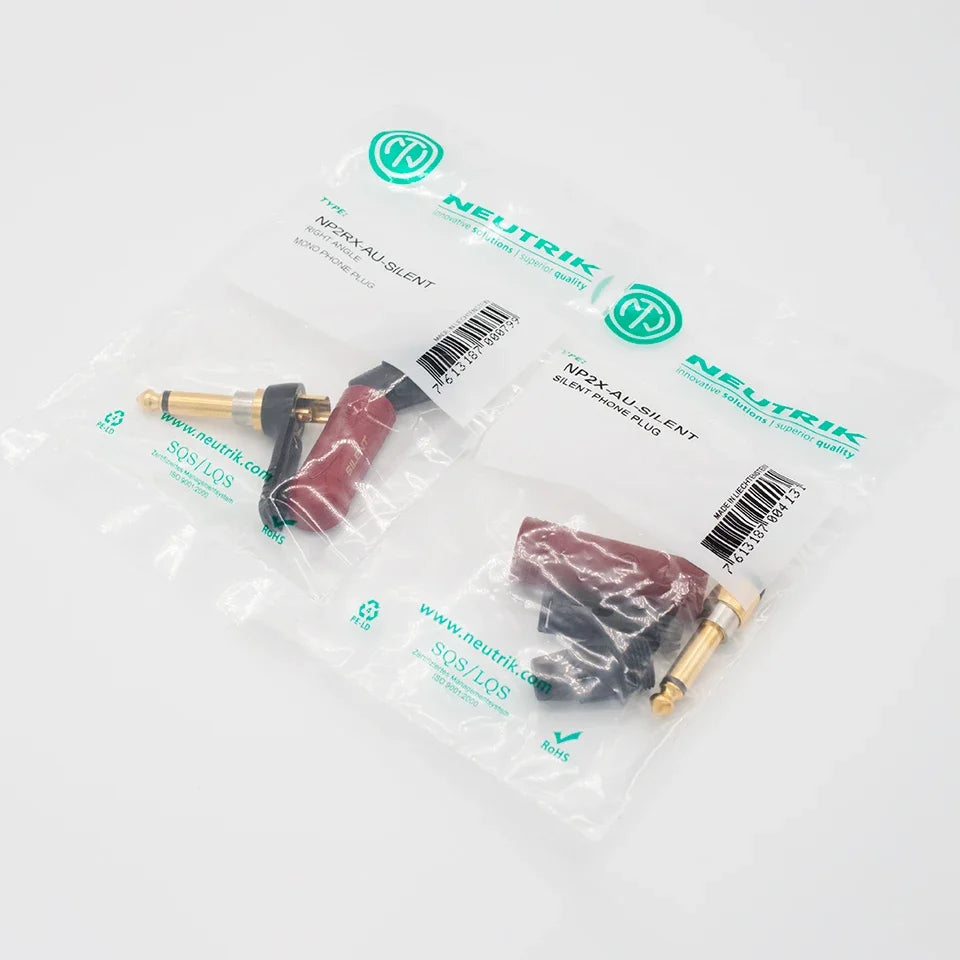

• Available in straight (NP2X-AU-SILENT) and right-angle (NPR2X-AU-SILENT) versions

• Professional 2-pole 1/4" TS plug for instrument cables

• Rugged metal shell with rubber overlay for improved shock protection

• Neutrik chuck-type strain relief for secure cable retention

• Solder-contact design for custom cable builds and repairs

• Designed for guitar/instrument use (not speaker output)

Specifications

• Brand / Type: Neutrik silentPLUG (listing title references Switzerland / Neutrik)

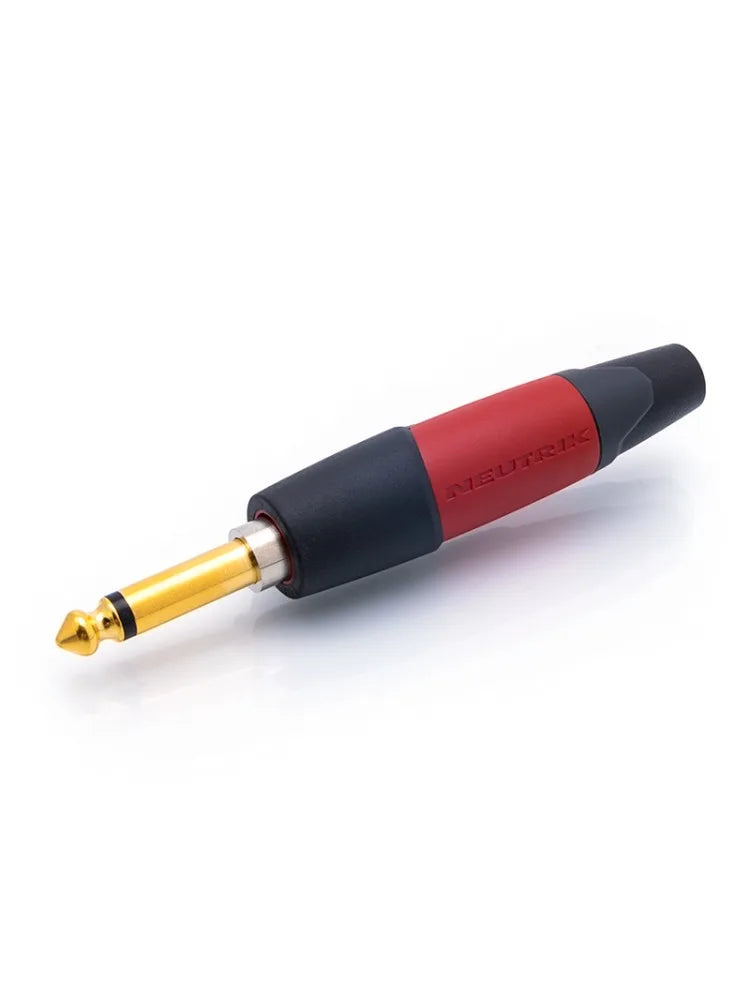

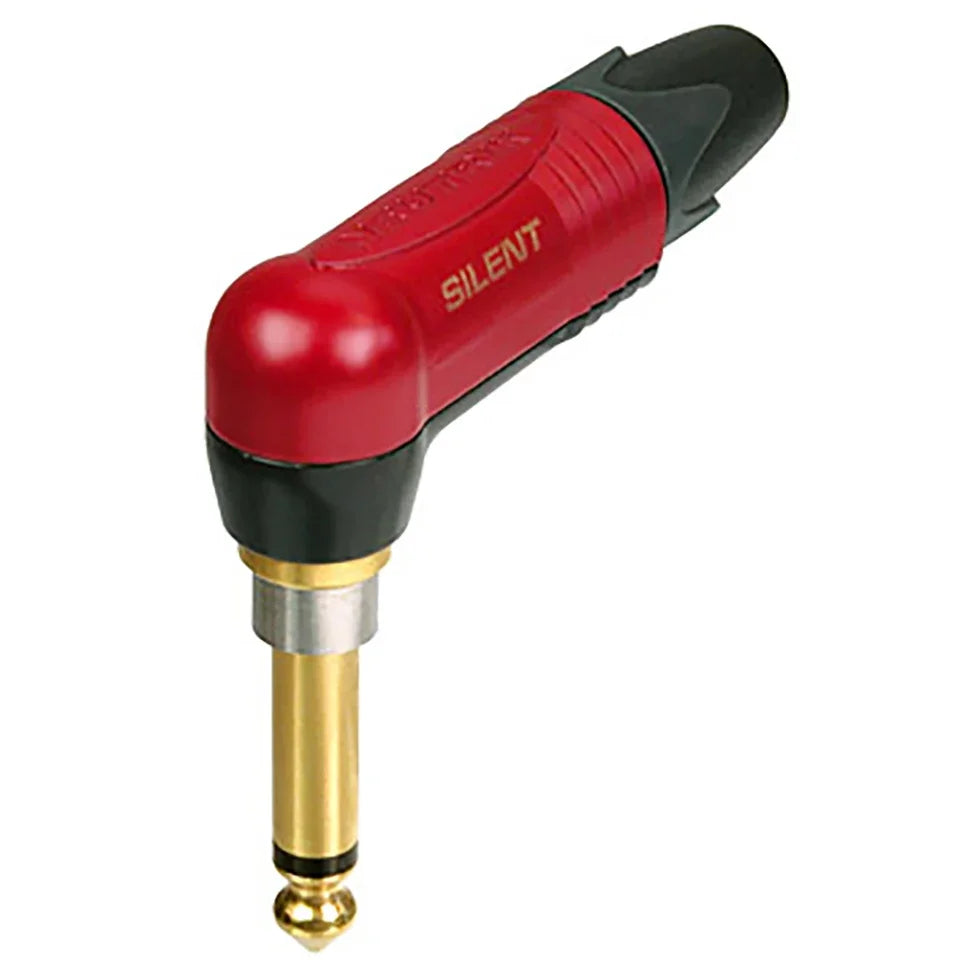

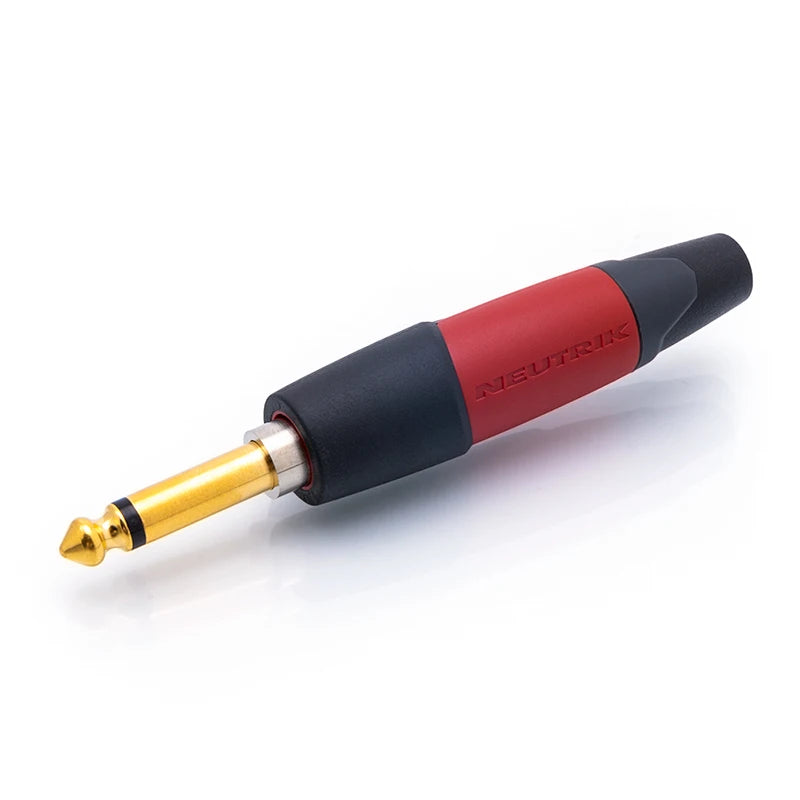

• Models: NP2X-AU-SILENT (straight) / NPR2X-AU-SILENT (right-angle)

• Connector Type: 6.35mm (1/4") TS / 2-pole plug (male)

• Application: Instrument (guitar) cable connector

• Contact Plating: Gold-plated (0.2 µm Au)

• Wiring: Solder contacts

• Cable O.D. (listed): 4–7 mm (listing also notes L-D versions can accommodate up to 8 mm)

• Wire Size: up to 1 mm² / 18 AWG

• Rated Voltage: < 50 V

• Dielectric Strength: 0.2 kVdc

• Insulation Resistance: > 2 GΩ (initial)

• Temperature Range: -20°C to +65°C

• Shell Material: Zinc diecast (ZnAl4Cu1)

• Strain Relief Material: Polyacetal (POM)

• Standard Compliance: IEC 60603-11 / EIA RS-453

Package Contents

• 1 × Neutrik silentPLUG 1/4" TS Plug (selected model: straight or right-angle)
