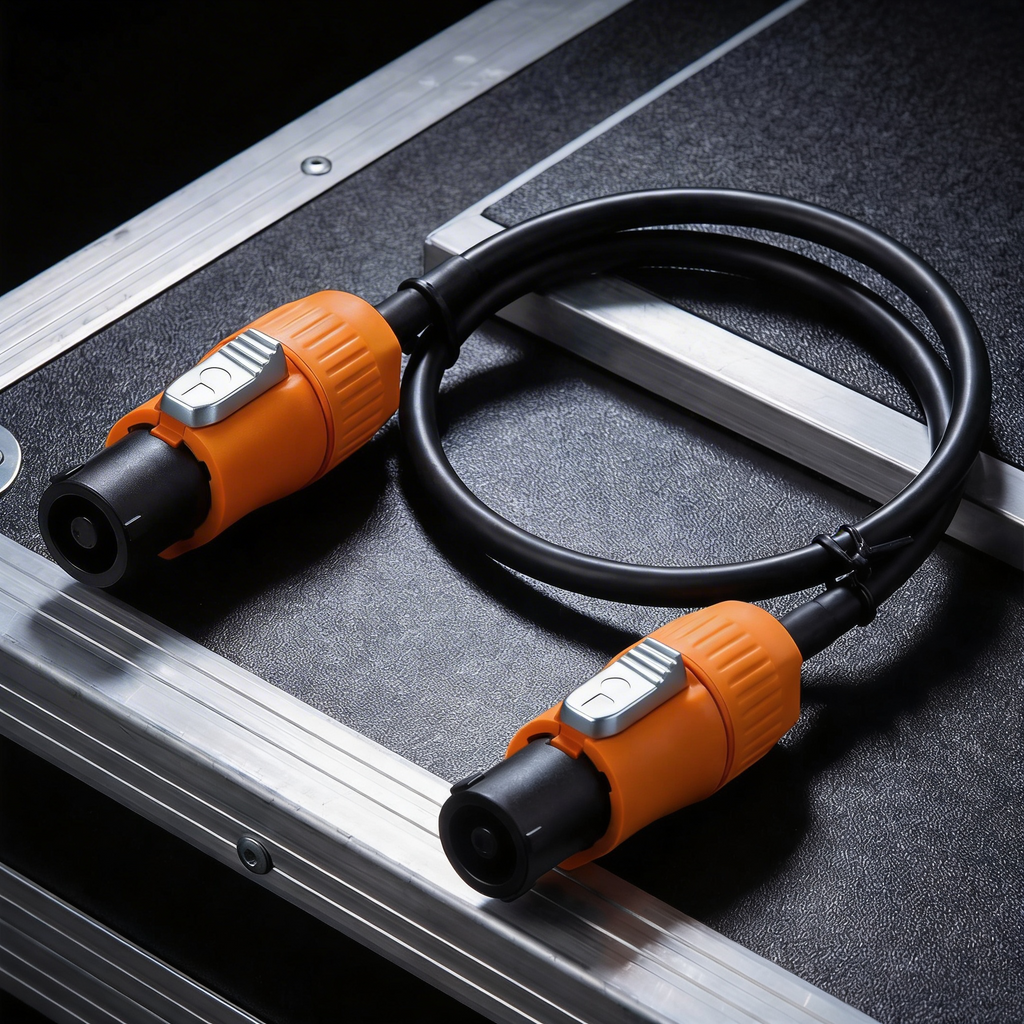

Power cables are the last place you want surprises. This PowerCON-style locking AC cable is built for stage lighting, LED screens, and live production setups where a secure connection matters. With 20A / 250V rated connectors, a locking twist design, and a waterproof / flame-retardant build, it’s made for real-world load-ins, stage runs, and repeat setup/teardown use.

Available in multiple lengths and connector color combinations, it helps you keep power runs safer, cleaner, and easier to identify in busy rigs.

Features

PowerCON-style locking AC connectors for secure stage power connections
20A / 250V rated for lighting and live production applications
Waterproof / flame-retardant connector construction
Twist-lock design helps prevent accidental unplugging
Heavy-duty 10mm cable outer diameter for rugged use
Available in multiple lengths for flexible stage and install routing
CE / RoHS certified (per listing)

Specifications

Type: AC locking power cable (PowerCON-style)
Model: K1045
Connector A: PowerCON connector male plug (NAC3FCA / NAC3FCB-style, depending on selected option)
Connector B: PowerCON connector male plug (NAC3FCA / NAC3FCB-style, depending on selected option)
Rated Current: 20A
Rated Voltage: 250V
Electrical Contact: 2P + E
Contact Resistance (internal): ≤ 3 mΩ
Insulation Resistance: > 0.1 GΩ
Dielectric Strength (external): 4 / 2.8 Kvac
Connector Material: PA66 / ABS-style housing with copper contacts (per listing)
Cable Outer Diameter: 10 mm
Supported Cable Diameter (connector spec): 5–12 mm
Service Life: > 1000 mating cycles (per listing)
Length Options: 1m / 1.5m / 2m / 3m / 4m / 5m / 6m / 7m / 8m / 9m / 10m

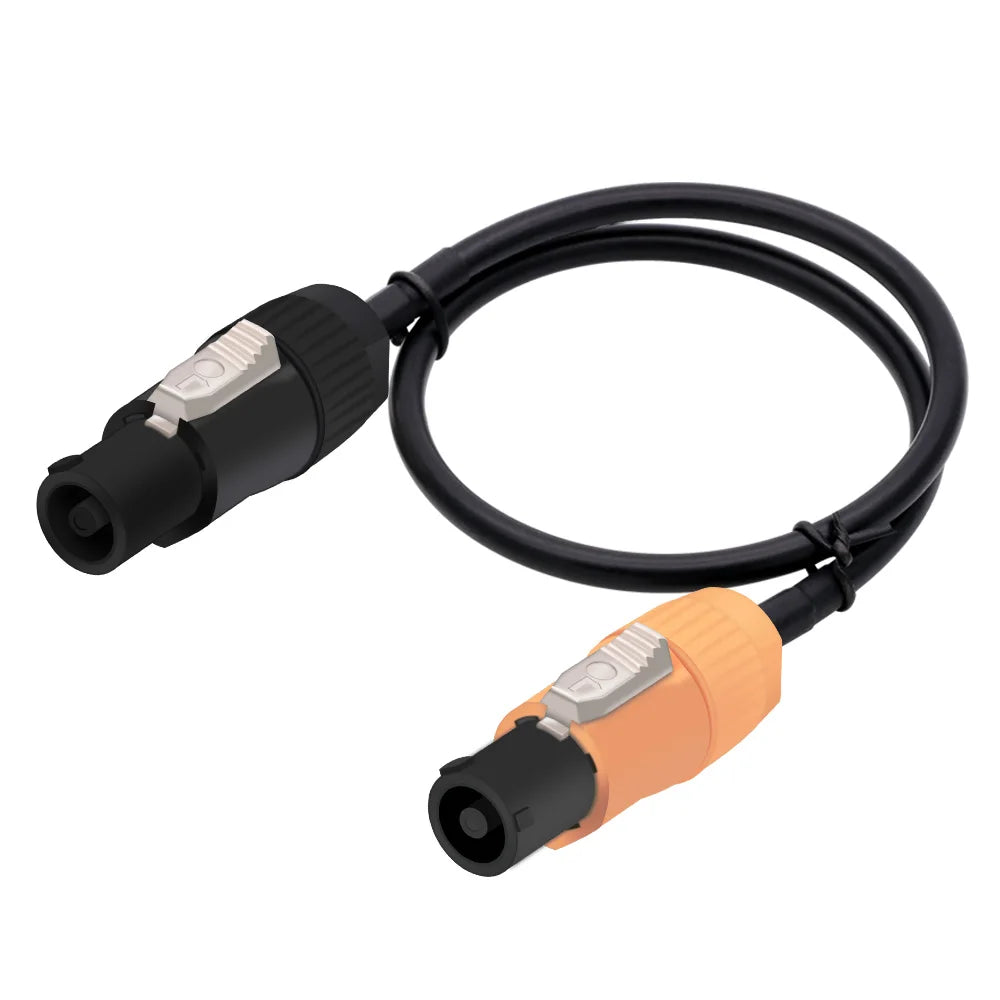

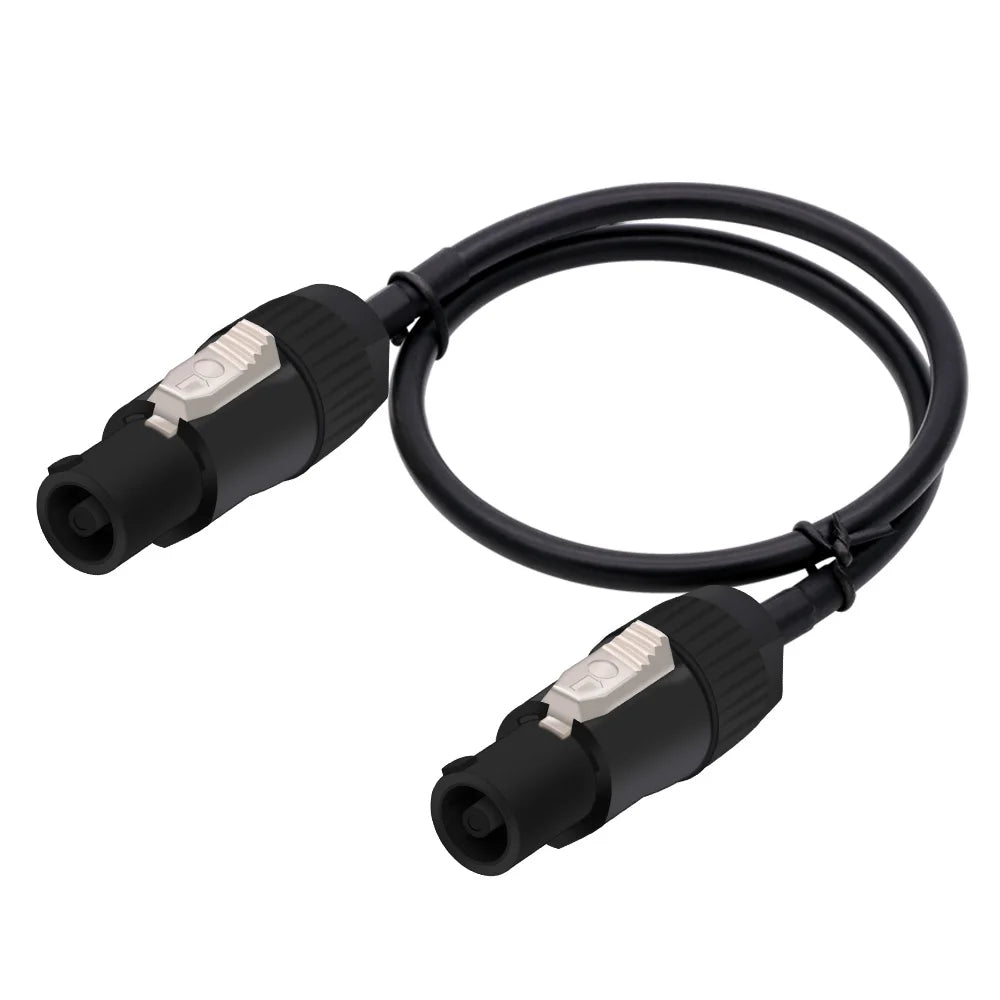

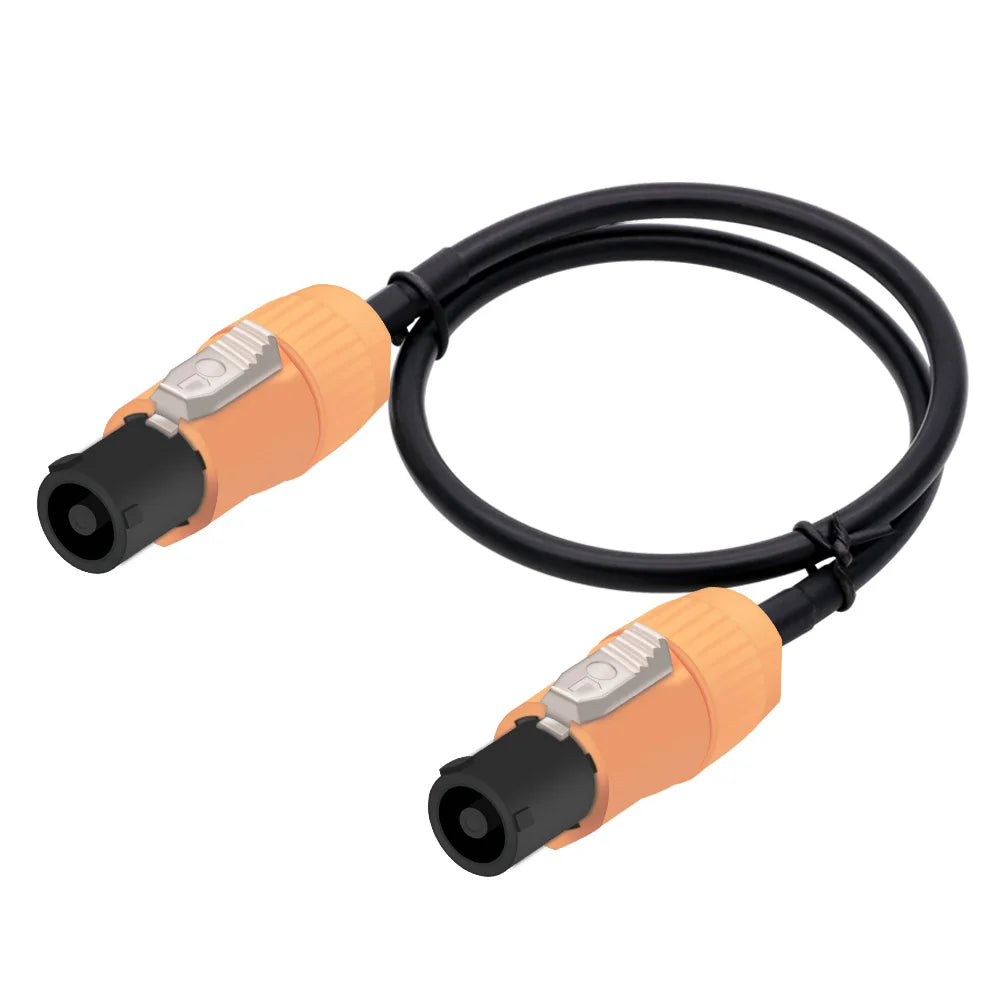

Connector Color Options: Black / Orange (including Black↔Black, Black↔Orange, Orange↔Orange depending on selected version)
Certification: CE / RoHS

Package Contents

1 × PowerCON AC Locking Power Cable (selected length / connector color combination)
