Powercon 3-Pin Locking Power Connector 20A 250V

Built for reliable power distribution in live environments, this Powercon-style locking connector is designed for stage lighting, LED panels and professional audio setups where standard plugs just aren’t enough. With a secure twist-lock mechanism and durable flame-retardant housing, it helps prevent accidental disconnections during performances, making it a practical choice for touring rigs, installations and demanding stage work.

Features

• Locking Powercon-style connector for secure stage power connections

• Designed for LED screens, lighting rigs and professional audio systems

• Fast rotary locking system prevents accidental unplugging

• Separate Power-In (Blue) and Power-Out (Grey) keys to avoid incorrect connections

• Flame-retardant PA66 housing for added safety

• Pure copper contacts for stable current flow

• Durable design built for repeated setup and teardown cycles

• Ideal for live production, events, touring and fixed installations

Specifications

• Connector Type: Powercon Style AC Connector

• Poles: 3 Pin (2P+E)

• Rated Current: 20A

• Rated Voltage: 250V

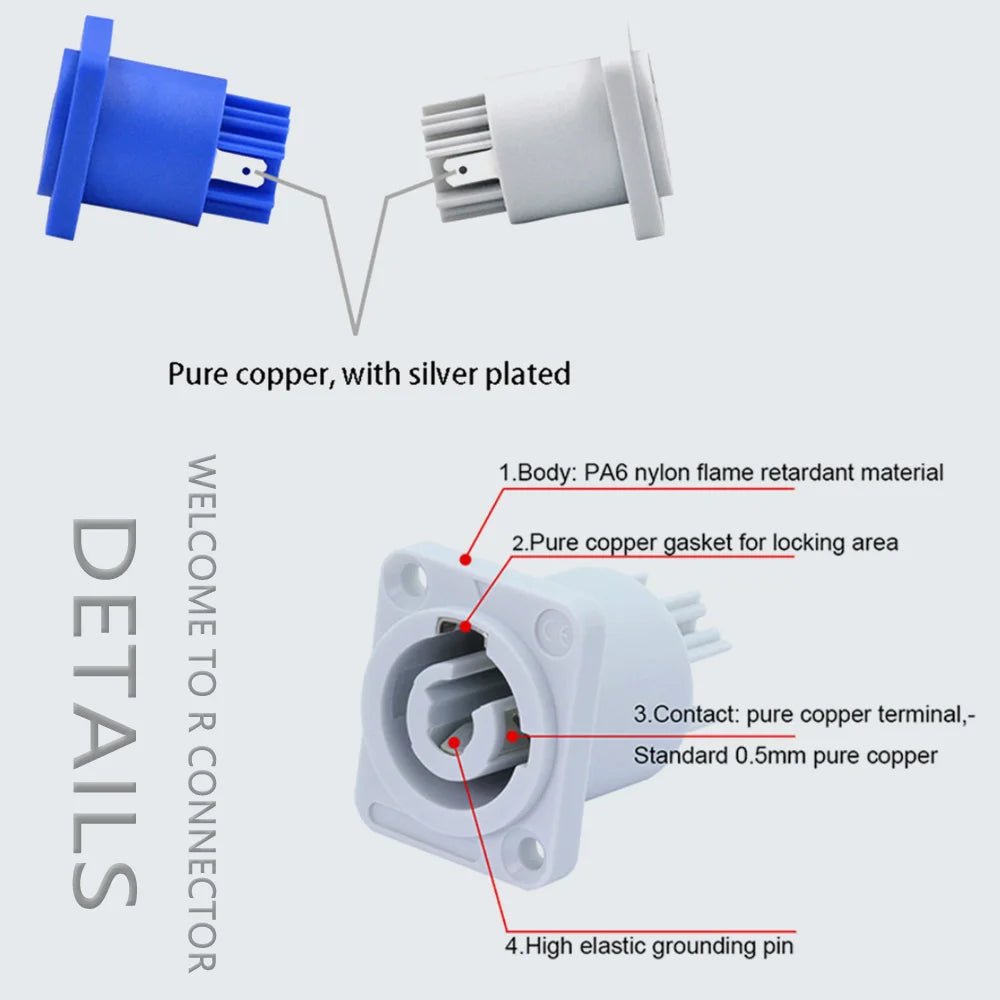

• Contact Material: Pure Copper

• Housing Material: PA66 Flame-Retardant Plastic

• Cable Diameter Support: 5–12 mm

• Contact Resistance: ≤3 mΩ

• Insulation Resistance: >0.1 GΩ

• Dielectric Strength: 4/2.8 Kvac

• Service Life: >1000 mating cycles

• Colors:

  • Blue: Power-In (NAC3FCA style)

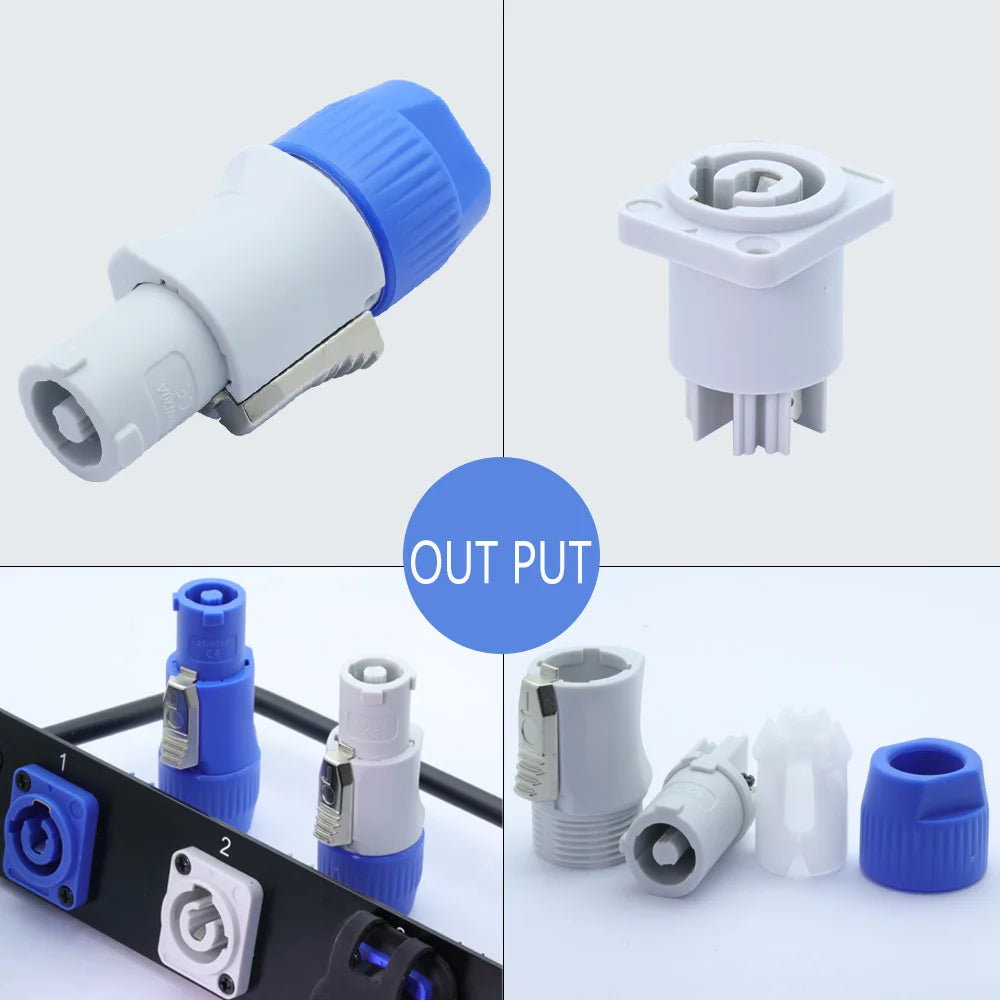

  • Light Grey: Power-Out (NAC3FCB style)

Package Contents

• Powercon Locking Connector ×1
