REAN 6.35 mm Right-Angle TS Pancake Plugs

If you need low-profile right-angle plugs for tighter pedalboard layouts or custom cable work, these REAN pancake-style connectors are built for practical space-saving assembly. They are designed as mono 1/4" TS plugs for compact patch leads, guitar cables and other unbalanced signal connections.

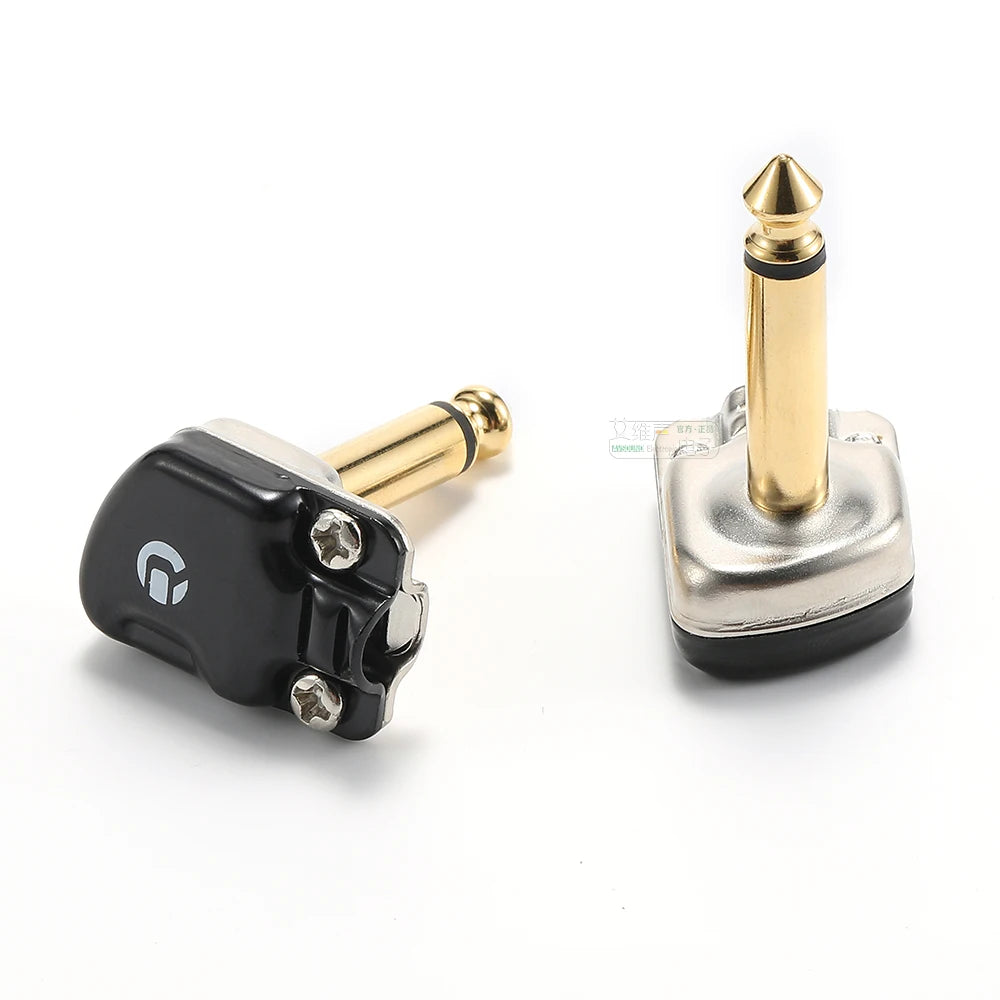

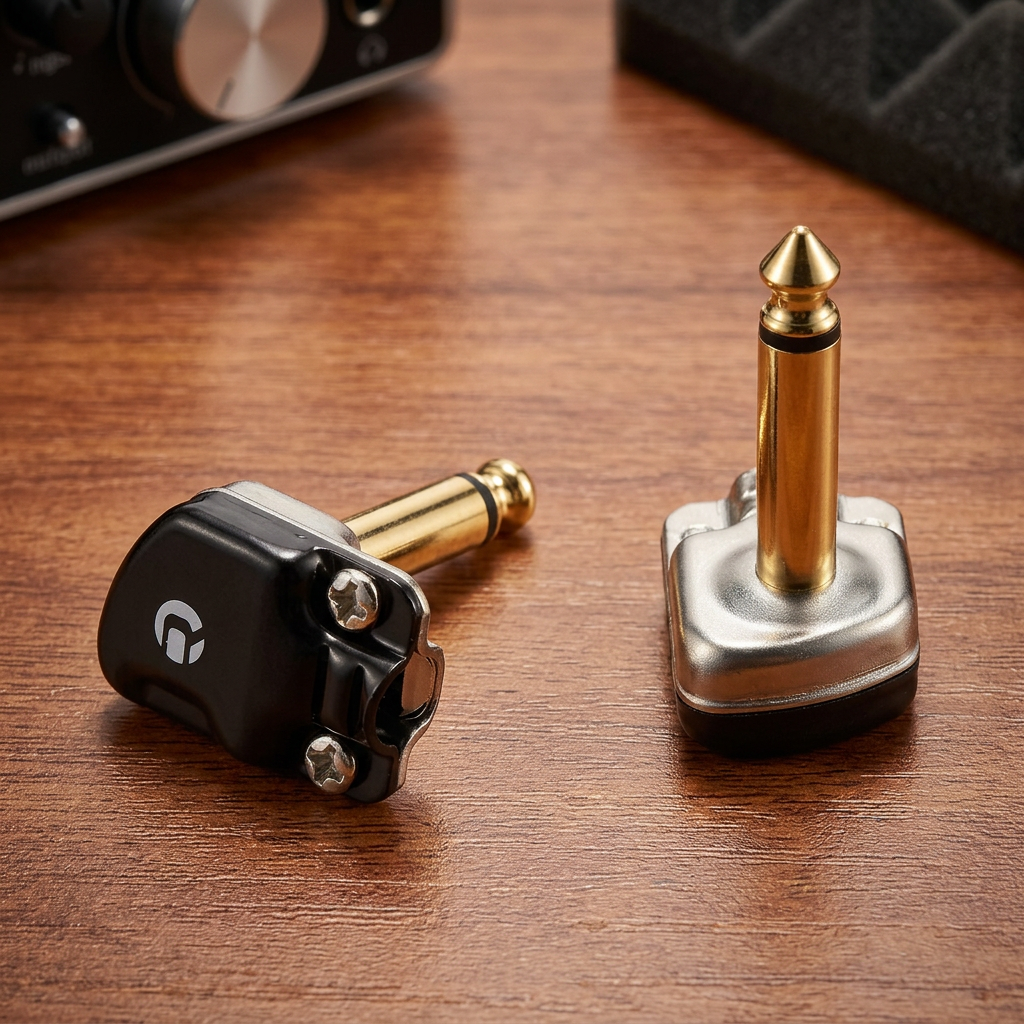

This listing is for a 10-piece pack and is available in RP2RCF or RP2RCF-B versions. The standard version features a nickel housing with nickel-plated contacts, while the black version uses a black housing with gold-plated contacts.

A solid option for pedalboard builders, techs and players who want a cleaner cable layout without the bulk of larger jack plugs.

Features

• Low-profile pancake design: Helps save space on tighter pedalboards and patch bays

• Mono TS connection: Suitable for guitar, patch and other unbalanced 1/4" cable builds

• Right-angle format: Keeps cable routing cleaner and closer to the board or rack edge

• 10-piece pack: Useful for full pedalboard rewires or multiple custom cable builds

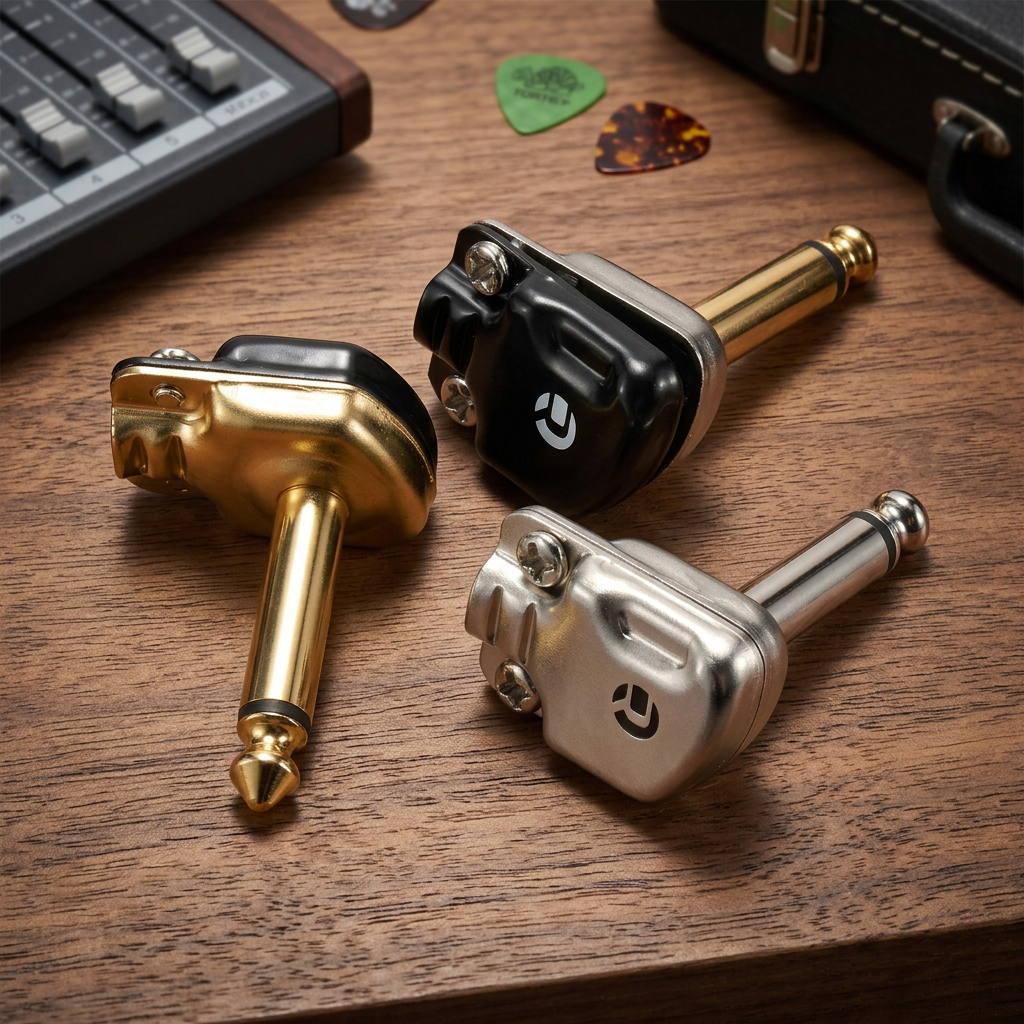

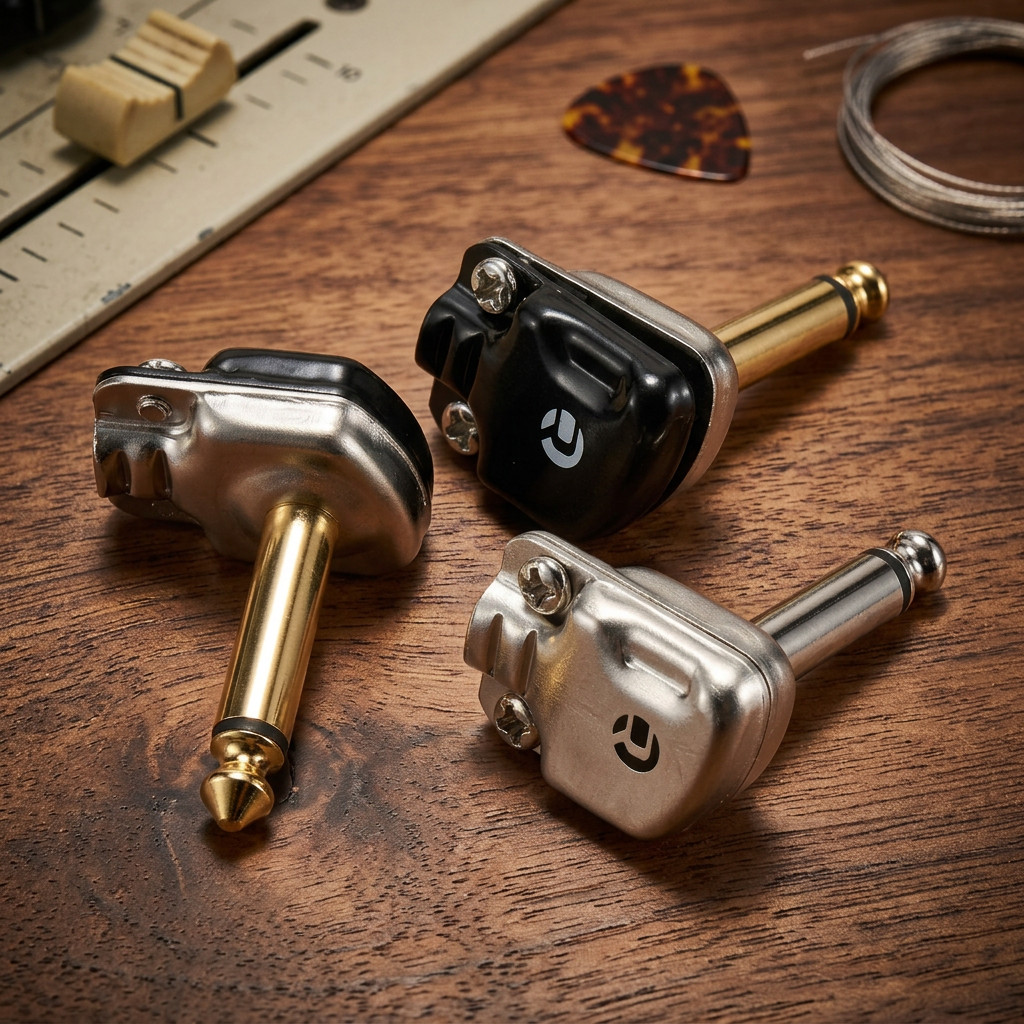

• Two finish options: Available in standard nickel or black housing versions

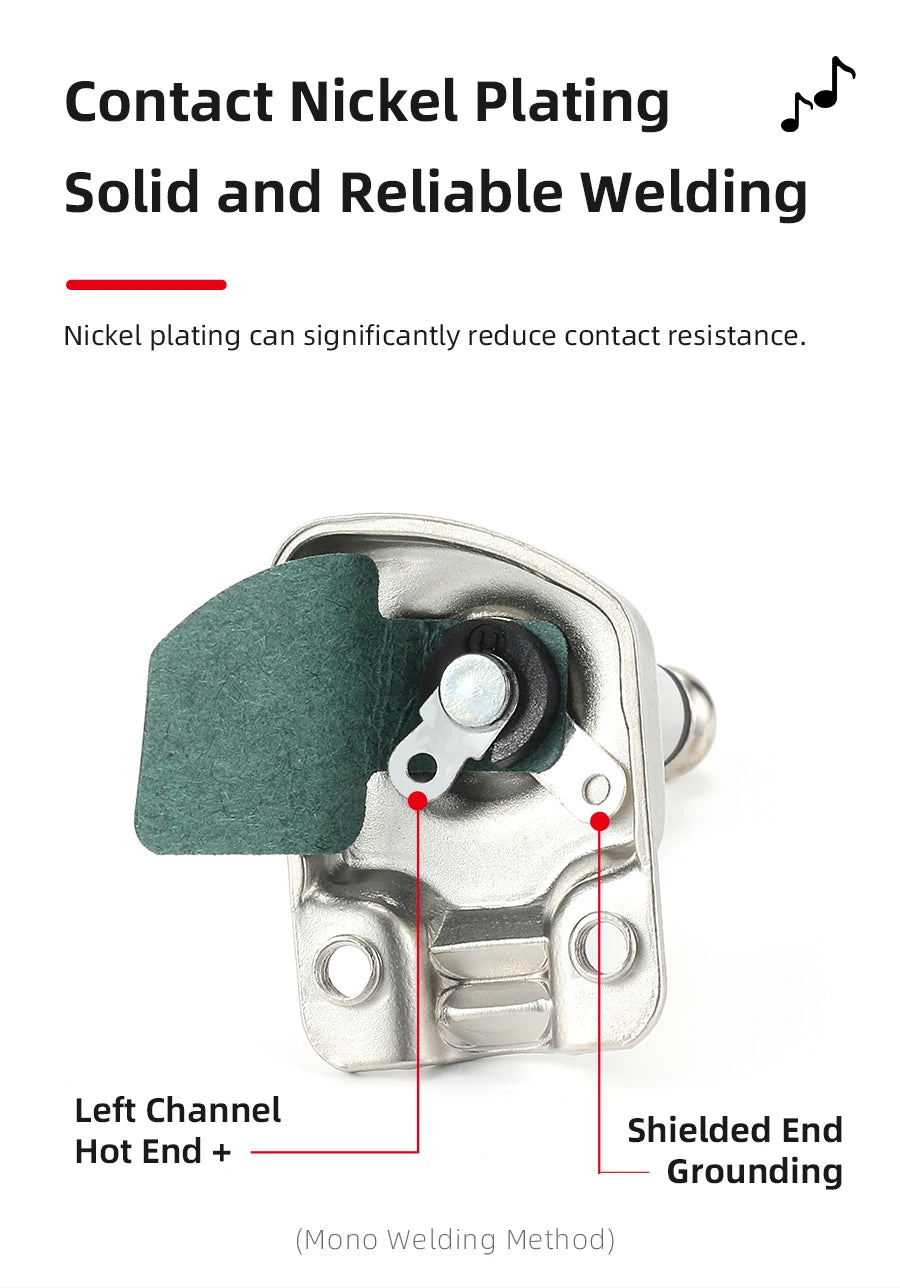

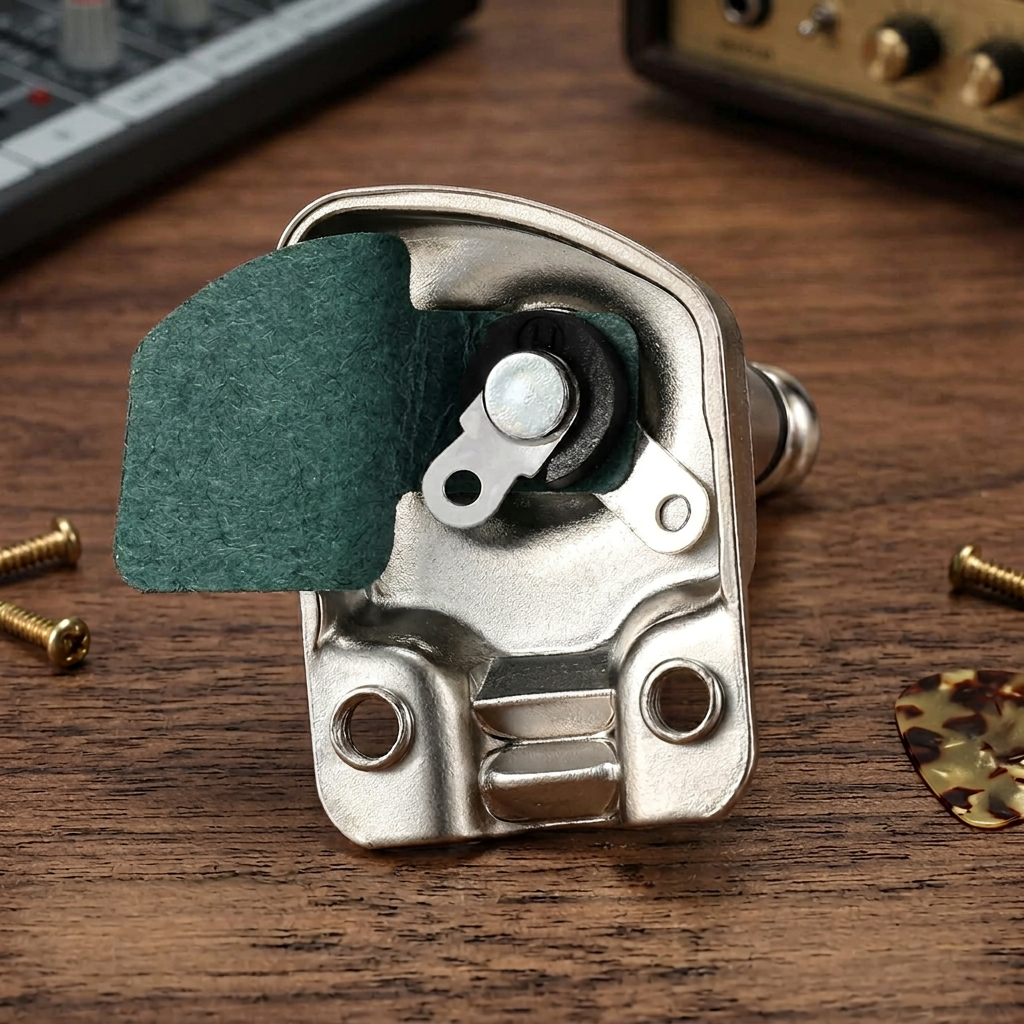

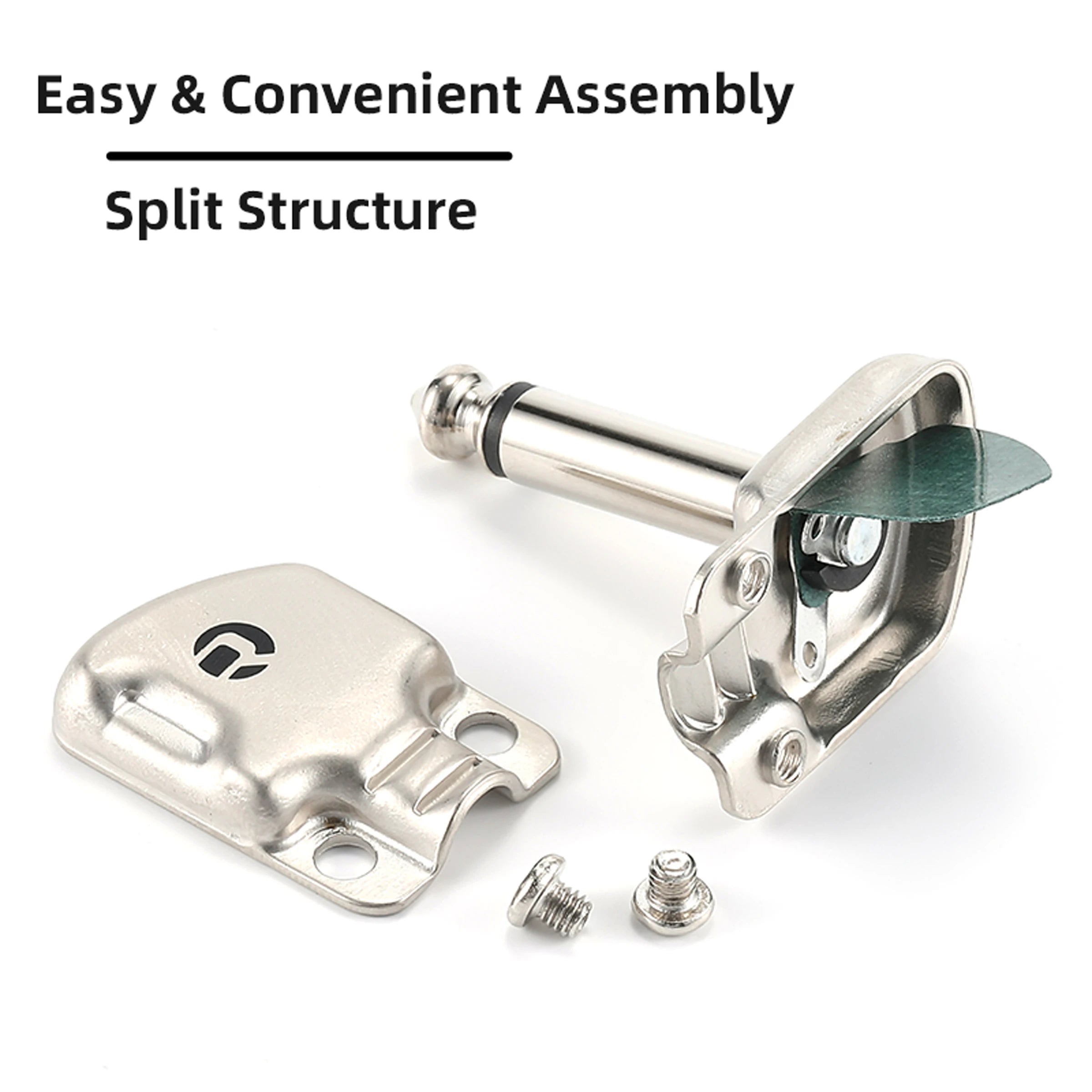

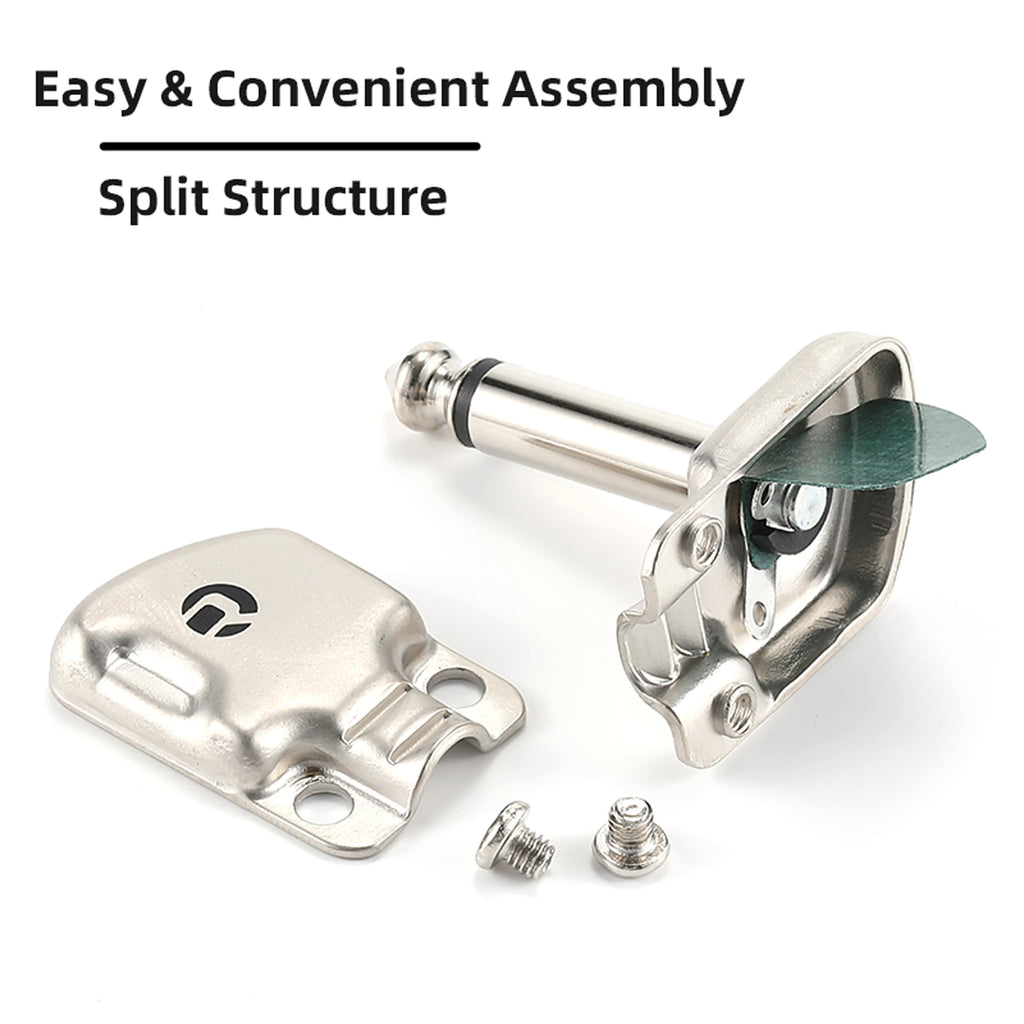

• Cable-build friendly: Designed for soldered custom cable assembly

Specifications

• Brand: REAN

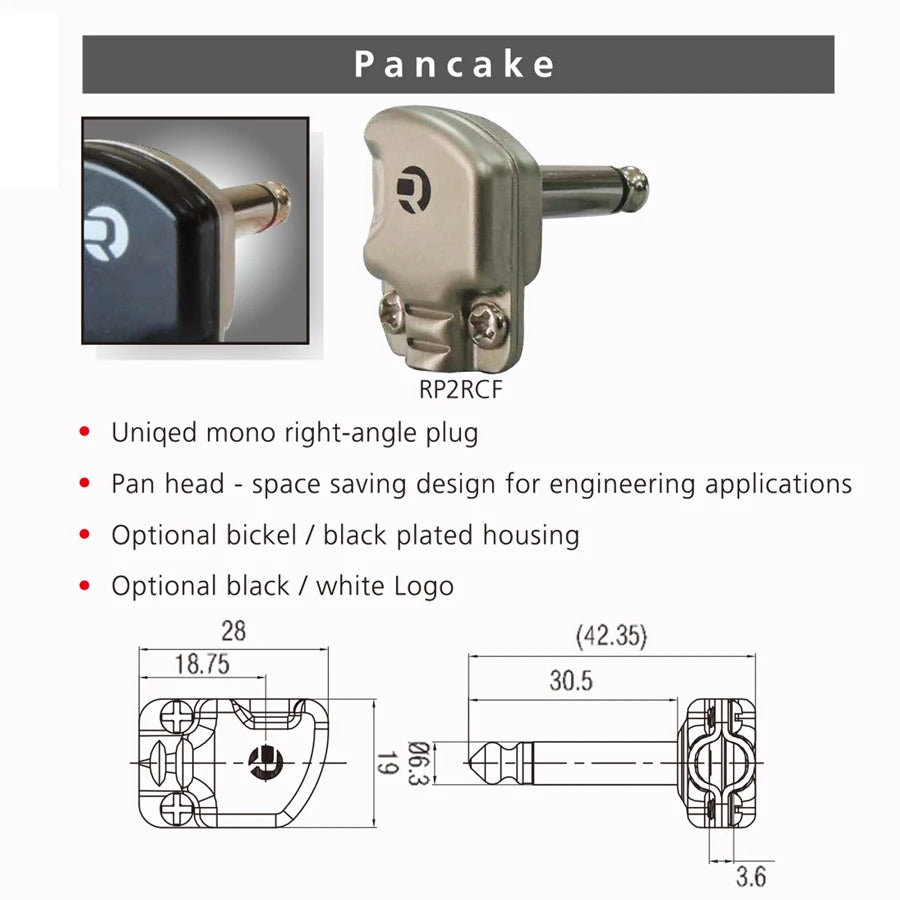

• Model: RP2RCF / RP2RCF-B

• Connector Type: 1/4" mono TS right-angle plug

• Connector Size: 6.35 mm

• Gender: Male

• Pack Quantity: 10

• Cable Outer Diameter Support: 4 mm to 7 mm

• Housing Material: Steel

• Sleeve and Inner Material: Brass

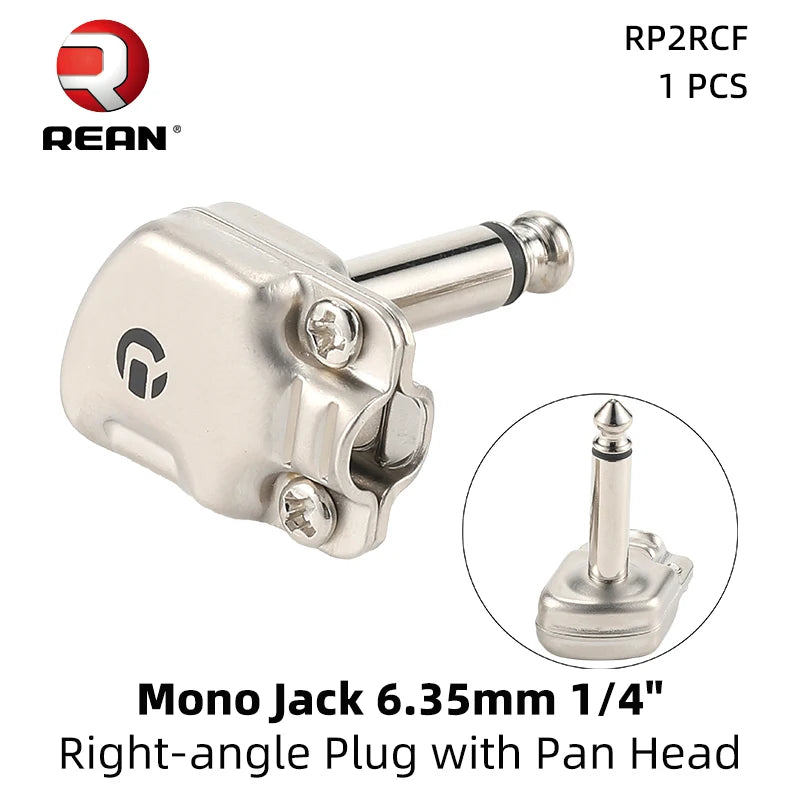

• RP2RCF Finish: Nickel housing, nickel-plated contacts

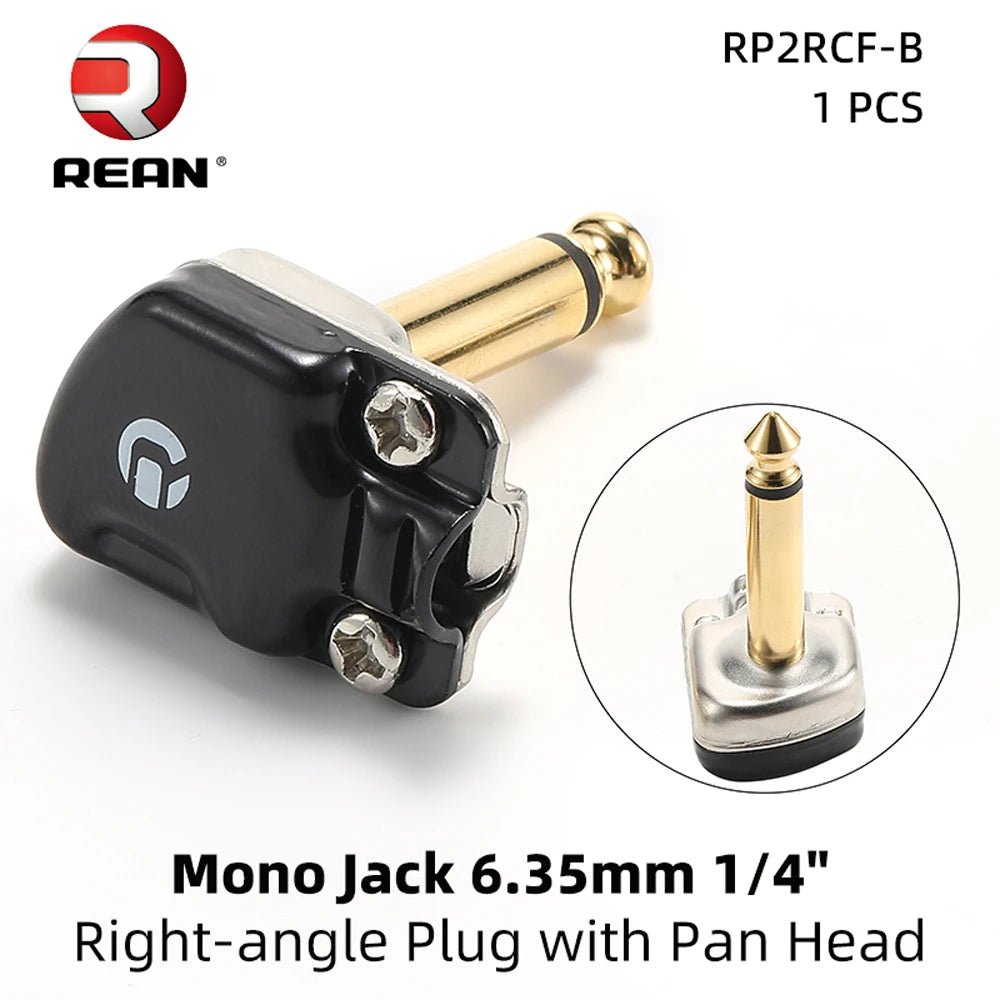

• RP2RCF-B Finish: Black housing, gold-plated contacts

• Dielectric Strength: 0.5 kV DC

• Insulation Resistance: > 1 GΩ

• Mating Cycles: > 1000

• Insertion / Withdrawal Force: ≤ 60 N

• Temperature Range: -20 °C to +70 °C

• Flammability: UL 94 HB

• Certification: RoHS

Package Contents

• 10 × REAN 6.35 mm right-angle TS pancake plugs
